db4a — Dune: The Battle for Arrakis, rebuilt native

Mouse control

On by default. Left button is A, right is B, middle is C — and the cursor is under your pointer on the same frame you move it.

The cartridge cannot do this

Written, not steered

The cartridge moves its own cursor at most three pixels a frame, so crossing the screen takes over two seconds. No amount of nudging a d-pad emulation makes that keep up with a pointer. So db4a writes the cursor position directly instead.

Its scrolling rule had to go too: the original scrolls whenever the cursor leaves a box in the middle of the screen about a quarter of its width. That is fine for a d-pad and unusable with a mouse, because the map lurches the moment you point away from centre. A 24-pixel band at the screen edges replaces it, with speed ramped by how far into the band you have pushed.

The system pointer hides wherever the game draws a cursor of its own.
Arrow keys still scroll the map with mouse control on.
The view no longer re-centres when a building is ready to place — the pointer is already where you are looking.

An Atreides base in db4a, mid-mission — Mission one, **played to victory** and replayed frame for frame as a regression test.

Menus too

Point at a thing to pick it

Pointer selection reaches the screens where it matters. In the Construction Yard's build console, pointing at an icon selects it — showing its name and price — and left click builds it. The Starport takes the pointer. So do house selection and the mentat's yes-or-no.

Each of those is covered by a test that points at a cell and requires the game to have selected it: make check-menu and make check-menus.

The Construction Yard build console with CONCRETE selected — Build console — **name and price** on hover

The mentat asking whether to join House Atreides — The mentat's **yes or no**, clickable

Widescreen

On by default at 400×224. Anything from 320 to 1024 works in either direction, so 640×480 and 800×600 do too.

More map, not a stretched picture

During gameplay the whole picture shifts right, which keeps the HUD flush against the right edge with its backdrop still underneath it, and the new space opens on the left as more map. Menus, the mentat and the cutscenes are 320-wide compositions with nothing to anchor a wider one, so they are centred rather than stretched.

The extra picture is drawn from the game's own map data, read straight out of work RAM. The cartridge only ever writes tiles for the 320 pixels it believes are visible, so reading those back gives you leftovers that depend on which way you last scrolled. Map data has no such dependence. It cannot invent map either: ground you have never explored stays dark, exactly as the cartridge would leave it.

wide = 320 is a real off switch, not an approximation of one. The cartridge's own 320 pixels come out byte-identical either way — proven at nine view sizes up to 1024×1024, with the recorded mission replaying unchanged at every one of them.

320×224 — what the cartridge shows

The same moment at the cartridge's 320x224

400×224 — the same frame, same scale

The same moment at 400x224, showing more map on the left

Up to the size of the map itself

Why the ceiling is 1024

The cartridge tells us so itself. The camera limits it writes leave a world exactly 1024 pixels square in both missions measured, so a 1024-wide view shows the whole map at once and holds the camera still. Anything beyond that could only be empty space.

400 is the default rather than the maximum for a plainer reason: the wider the view, the more of your screen is fog of war rather than scenery.

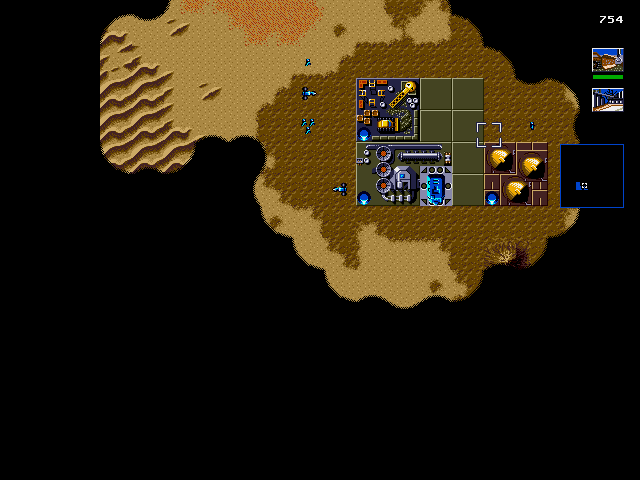

The same mission running at 640x480 — The same mission at **640×480**. Extra lines fill in below, from the same map data.

Comforts

The small things a 1993 cartridge had no way to offer. None of them change what the game simulates.

Save states

F5 writes, F9 reads. The whole machine is recorded, and a build that changes the CPU or chip layout refuses an old file rather than loading it corrupt.

Pause & fast-forward

P pauses. Hold ` (backtick) or F to run fast — useful for the long stretches where you are waiting on spice.

Fullscreen & integer scaling

F11 toggles fullscreen. Integer scaling makes every source pixel the same number of screen pixels, at the cost of black borders.

Gamepads & remapping

Pads are picked up automatically. Any face button can be rebound without a rebuild: keys = a=q,b=w,c=r.

A settings file

db4a.conf sits next to the binary, so you can tinker and restart without a shell. The startup banner prints what actually resolved.

Record & replay

Sessions record deterministically and replay frame for frame — keyboard and pointer alike. It is how the regression tests are made.

Menus that keep up

Menu selection arrives in one step instead of crawling across the screen at the cartridge's pace.

Hand it to a friend

make dist packages the game, your cartridge and a config into one folder that runs anywhere: ./play.sh.

Beyond mission one

All three houses load and play, missions progress, and both endings are reached. Every screen below is db4a's own output, from a replay or a scripted run.

**Harkonnen selected**
Any of the **three houses**, each with its own mentat and colours.

**The Harkonnen mentat**
Briefing you before the first mission.

**The region map**
Between missions, the three houses' territory on Arrakis.

**Mission one, won**
Replayed frame for frame as the project's deepest test.

**The rank you earned**
Spice harvested, units and structures destroyed, on both sides.

**Mission two**
Where the enemy shoots back. The tutorial mission has none.

**And it can be lost**
Reached by leaving mission two alone and letting the enemy work.

A spice field beside a half-built base — **Spice, and fresh concrete**
The map data the widened strip is filled from is this same ground.

How closely it matches

All of it reproducible from a clean checkout. The project's own rule is that a heuristic gets labelled as a heuristic.

CPU	19667 / 19667 SingleStepTests m68000 vectors
Z80	zexdoc, plus per-instruction T-state timing
Menus	Pixel-exact against Genesis-Plus-GX
Gameplay	99.2% — the residual is unit positions a pixel or two out
Pacing	PAL 49.7015 Hz, 0.0002% drift
Audio	YM2612 + PSG. Music starts within 0.02 s of the reference; envelope correlation 0.80
Build	~35 s from clean, no warnings

What is not finished

Audio is a question of levels now, not timing. The music bug is fixed: the sound driver was losing a third of its Z80 interrupts, because the VDP holds that interrupt as a level for one scanline and db4a was pulsing it. The music now starts within 0.02 s of the reference where it was 12.7 seconds late, and the stream of chip writes matches to 0.3%. What is left is synthesis: the mix runs about 3.3 dB hot and its envelope correlates 0.80 against the reference rather than 1.0.

Not every mission has been played. The campaign's structure is verified — all three houses, mission progression, victory and defeat — but the later missions of each house have not been played through by hand.

Mission one is playable end to end and can be won or lost.

Download

A build to run, or the source to build. Both play the same game.

Ready to run

Latest build

Windows	`-windows.zip` — unzip anywhere and run `play.bat`. SDL2.dll is in the folder; there is nothing to install.*
Linux	`*-linux.tar.gz` — needs SDL2 from your distribution, and `./play.sh` names the package if it is missing.
macOS	Builds and passes its tests in CI, but no package is made for it yet. Build it from source.

Every archive carries a BUILD.txt that identifies the build exactly — quote it in a bug report — and a report/ directory. play.bat --record writes your inputs there, and a recording replays deterministically, so a bug caught in one can be reproduced rather than hunted for.

The tag rolls: there is no version scheme yet, so the release is replaced on every push and always describes the current tip. Keep the file if you want to keep the build.

Build it yourself

git clone https://github.com/Vegasq/db4a
cd db4a

make          # generate, build, run the unit tests (~35 s)
make play     # play

make play WIDE=320    # the cartridge's own view
DB4A_MOUSE=0 make play # keyboard and pad only

Linux, macOS and Windows — CI builds and tests all three on every push. Developed on Fedora 44; any distribution with SDL2 and the analysis tools should work.

Mouse control and the widened view are on by default and each switches off, as above. The faithful-v1 tag is the recompile with no modernisation compiled in at all.

About the cartridge

The build translates the ROM's 68000 code into C, so without it there is nothing to compile — not from a clean checkout, and not in CI. So the repository includes a copy of the European cartridge, and the download archives contain it too, because the binary keeps reading its graphics, maps and sound data out of it while it runs.

Nothing about the game's age changes who owns it, and no claim is made here that including it is permitted. If a rights holder asks for it to be removed, it will be removed — promptly, and from the history rather than just the tip, so clones stop carrying it. Open an issue or contact the repository owner.

The rest of the project stands without it. Every tool, every test and every line of hand-written C here is original work, and the build falls back to requiring a dump you supply yourself, exactly as it did before:

roms/Dune-The-Battle-for-Arrakis_Genesis_EN/
    Dune - The Battle for Arrakis (E).bin

sha1  133cc86b43afe133fc9c9142b448340c17fa668e

make verify-rom checks it. Nothing else derived from the cartridge is published — framebuffers, RAM dumps, save states and audio captures are all regenerable from a make target, and .gitignore enforces it.

How it works

Static recompilation. 68000 basic blocks are translated into generated C functions, each returning the next PC, driven by a flat dispatch loop. Indirect transfers are computed return values rather than nested calls, so the C stack never grows.

That was chosen over a hand decompilation — realistically person-years for a 1 MiB cartridge — and over extracting the assets into a new engine. The deciding factor: the game's main state machine dispatches through a function pointer held in RAM, so static analysis alone cannot reach most of the ROM.

Instruction semantics are defined exactly once, as data. The recompiler and every generated test come from the same definition, so an instruction cannot behave one way in one place and differently in another.

Some game logic is now ours: the cursor's edge-scrolling is reimplemented in C, and a checker runs both implementations on every call, diffing RAM, registers, flags, cycles and the exit PC.

The Mega Drive box art for Dune: The Battle for Arrakis — The 1993 box

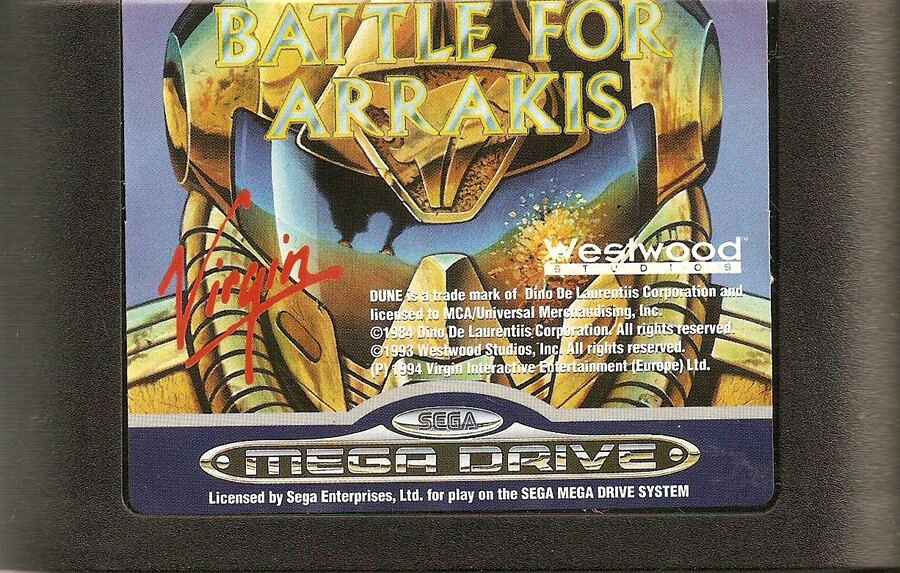

The European Mega Drive cartridge — The European cartridge db4a reads
